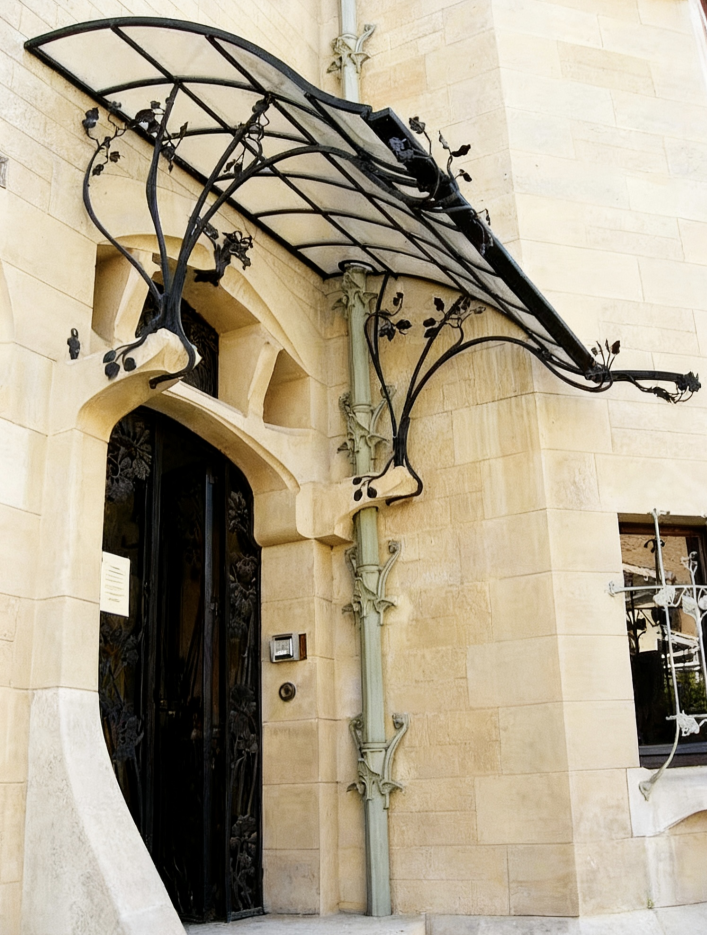

What Design Considerations Are Key for a Custom Iron Canopy?

Material Selection and Long-Term Durability of Iron Canopies

Evaluating Iron Alloys for Strength and Longevity

Cast iron (ASTM A48) excels in compressive strength, making it ideal for vertical supports. Ductile iron (ASTM A536) offers 40% greater tensile strength, suiting it for spanning applications. Forged iron beams provide three times the fatigue resistance of standard alloys in combined load simulations, enhancing performance in cantilevered designs.

Comparing Iron, Steel, and Aluminum for Outdoor Climate Resilience

Steel requires zinc coatings to match cast iron's natural corrosion resistance, increasing material costs by 18—25% (NACE 2022). Although aluminum is 45% lighter, its reduced load capacity poses risks in snow-prone regions.

Protective Coatings and Corrosion Resistance in Iron Canopy Systems

Zinc-aluminum magnesium coatings reduce rust penetration by 89% compared to traditional primers, as verified by ASTM B117 Salt Spray Testing. In coastal environments, three-coat fluoropolymer systems maintain color stability through Category 3 hurricanes and thermal swings up to 150°F.

Lifecycle Cost Analysis: Balancing Upfront Budget and Long-Term Value

Iron's initial cost is 2.5 times higher than aluminum, but its 35-year service life—compared to aluminum's 12—15 years—results in 22% lower total ownership costs (FHWA lifecycle analysis 2023). Properly coated iron requires only $0.18/sf annually in maintenance, versus $0.42/sf for steel repainting.

Structural Engineering Principles for Safe and Stable Iron Canopies

Understanding Load Distribution in Static and Dynamic Conditions

When designing iron canopies, engineers need to account for both static loads like snow accumulation and fixed equipment, plus dynamic forces from things like sudden wind blasts or earthquake tremors. Getting the weight spread evenly across all those steel beams and connection points is really important because stress builds up where it shouldn't. According to research published last year, nearly two thirds of canopy collapses happened when weight wasn't properly distributed during severe storms. Most structural checks start with basic static calculations and computer simulations to see how the design holds up under normal conditions. But nothing beats actual dynamic tests that mimic what happens out there in the real world when winds start picking up and shaking things around unexpectedly.

Managing Dead, Live, and Environmental Loads by Region

Building codes across different regions set requirements for how much weight structures can handle. For instance, places in the north typically need buildings that can support heavier snow loads - think around 50 pounds per square foot in states like Montana compared to just 20 psf down in Texas. Meanwhile, areas along the coast worry more about strong winds lifting roofs off buildings. Good structural planning takes into account several types of weight considerations. First there's dead load which basically means everything that doesn't move but still weighs something (the actual building materials themselves). Then we have live loads from people walking around and all the stuff they put inside. And finally, environmental forces play their part too. Structures built near the Gulf Coast often require extra reinforcement at connection points because they face Category 3 hurricanes with wind speeds between 111 and 129 miles per hour. On the other hand, buildings located further inland generally focus more on standing up to repeated heating and cooling cycles that cause materials to expand and contract over time.

Wind and Seismic Resilience in Site-Specific Canopy Design

In high-wind or seismic regions, cross-bracing, tapered columns, and moment-resisting connections enhance stability. Computational fluid dynamics (CFD) modeling reduces wind drag by up to 40% through optimized aerodynamic profiles. In earthquake-prone areas, base isolation or energy-dissipating brackets absorb ground motion without altering aesthetic design.

Combined Load Simulations for Structural Reliability

Programs such as SAP2000 and ETABS are commonly used to model how structures handle all sorts of forces at once including snow buildup, strong winds, and earthquakes. These simulations help engineers spot where things might break before they actually do. For instance, if calculations show certain areas will fail under pressure, designers can make changes to metal sheet thicknesses or adjust how far apart supports need to be placed. Looking at actual field results from 2022 adds weight to this approach. When testing was done on building canopies subjected to multiple stress factors simultaneously, there were about thirty percent less problems with welded joints after a decade than when structures were only built to withstand steady, unchanging forces.

Water and Thermal Performance in Iron Canopy Design

Optimizing Slope, Drainage, and Gutter Integration for Rain Protection

A minimum 2% slope ensures efficient water runoff, reducing stagnation that accelerates corrosion by 23% (Structural Weathering Institute, 2023). Integrated gutters with 6-inch widths and 16-gauge thickness minimize debris buildup, while seamless downspouts prevent leakage. Rolled beam edges direct flow effectively, especially in regions receiving over 40 inches of annual rainfall.

Preventing Water Pooling Through Structural and Beam Design

Curved beam profiles eliminate low spots, and tapered cross-sections reduce pooling incidents by 60% in moderate climates. Reinforcement at critical points diverts water to secondary drainage channels without compromising strength. Spacing beams no more than 4 feet apart prevents sagging and moisture entrapment, extending canopy lifespan by 8—12 years.

Solar Shading Geometry and Heat Management Strategies

Adjusting louver angles between 30 and 40 degrees based on latitude can actually stop around three quarters of those pesky summer UV rays while still letting in enough warmth during colder months for passive heating benefits. Combine these angled louvers with some good old fashioned evaporative cooling techniques mentioned in that recent 2024 mist cooling research, and we're talking about surface temps dropping nearly 14 degrees Fahrenheit in really dry areas. The numbers get even better when looking at thermal modeling results. Proper spacing between these louvers cuts down heat transfer by about 35 watts per square meter over standard flat roofs. Makes sense when thinking about energy efficiency for buildings in hot climates.

Integrating Glass or Fabric Panels for Light and Temperature Control

Laminated glass panels reject 92% of UV rays while transmitting 85% of visible light, per commercial thermal performance trials. Breathable polyester-PVC fabric hybrids offer an 80% shade factor and 2.5 CFM/ft² airflow, cutting peak-hour heat gain by 35% versus solid roofs. Modular integration enables seasonal reconfiguration to balance light, shade, and ventilation.

Attachment Methods and Support Configurations for Iron Canopies

Cantilevered vs. Post-Supported Structures: Pros and Structural Impacts

Cantilever canopies are great because they don't block the ground space below, which makes them perfect for places where people need to walk underneath like entryways or between buildings. If we want to avoid sagging issues, the cantilever part shouldn't be longer than about a third of whatever it's attached to on the other side. When comparing different support options, post-supported designs actually handle weight much better than standard ones, sometimes around 75% more strength for the same distance covered. But there's a catch they need those permanent concrete bases installed. The International Building Code from 2021 has specific requirements too. Both cantilever and post-supported structures must include cross bracing wherever wind speeds regularly hit over 90 miles per hour. This is important safety stuff that architects and builders need to consider during planning stages.

Wall-Mounted and Foundation-Based Attachment Requirements

For wall mounted units, it's important to install continuous steel lintels that are properly anchored into load bearing walls. These need to be secured with ASTM A36 bolts spaced every 24 inches along the wall. When dealing with foundation based installations, reinforced concrete footings are necessary. In cold climate areas, these footings must extend at least 36 inches below the frost line to prevent structural issues later on. The galvanized base plates require careful shimming, ideally keeping them within plus or minus 1/8 inch tolerance to prevent problems from differential settling over time. Maintenance is also crucial here since all connection points should undergo annual torque checks to ensure everything stays secure and functioning correctly through changing conditions.

Ensuring Stability in High-Wind and Seismic Zones

When it comes to reducing sideways force during storms, top-down anchoring systems cut down on lateral movement by roughly 40 percent when compared with just securing from the base alone, as shown in hurricane simulation tests. For areas where winds regularly exceed 130 miles per hour, engineers recommend using 18 gauge steel cross ties angled at around 45 degrees to fasten canopy corners directly to ground anchors. This creates a much stronger connection point. Another important consideration is foundation stability. Recent research from structural engineers indicates that spacing helical piles approximately eight feet apart boosts earthquake resistance by about 28% compared to traditional concrete piers in clay soil conditions. These findings have significant implications for coastal construction projects facing both wind and seismic risks.

Aesthetic Customization and Functional Integration of Iron Canopies

Balancing Architectural Aesthetics with Practical Functionality

When it comes to iron canopies, they really do combine looks with lasting strength thanks to clever shaping and smart choices about what materials go where. Those arched shapes we see today actually have roots in old fashioned ironwork from centuries ago, and these curves help melt away snow buildup while making buildings look better from the street. The powder coat finish options are pretty impressive too. Most people get them in matte black or bronze, though some folks want something special and go for custom RAL colors instead. These coatings hold up against sun damage for around 15 to maybe even 20 years before needing touch ups. According to a recent report from the Architectural Metals Council back in 2023, properties with custom designed iron canopies tend to fetch better prices at sale time compared to places that settle for off the shelf solutions. Makes sense when thinking about how much character these structures add to commercial spaces.

Custom Scrollwork, Color Finishes, and Design Flexibility

When architects want to blend form with function, they often add decorative touches like scrollwork, geometric designs, or floral patterns that transform basic structural parts into real eye-catching features. Steel panels cut using laser technology can achieve amazing detail work while still maintaining their structural integrity, even at tolerances around 2 millimeters thick. For areas where rain falls heavily year after year, say over 50 inches annually, galvanized iron coated without PVC materials stands up much better against rust than regular untreated metal surfaces. Studies from the Metal Construction Association back this up showing roughly a 62% reduction in corrosion damage over time. Makes sense really when considering how much money gets wasted on replacing damaged materials in wet environments.

Incorporating Lighting, Greenery, and Smart Features

Integrated LED strip channels in canopy beams deliver ambient lighting (18—35 lumens/ft²) with full weather resistance. Planter brackets rated for up to 250 lbs support vertical gardens, softening industrial aesthetics. Smart sensor kits—available from leading suppliers—automate shade positioning based on sun angle and wind speeds up to 28 mph.
